SPECIFICATIONS
|
						Model
					 |
					V-300C computer
				 |

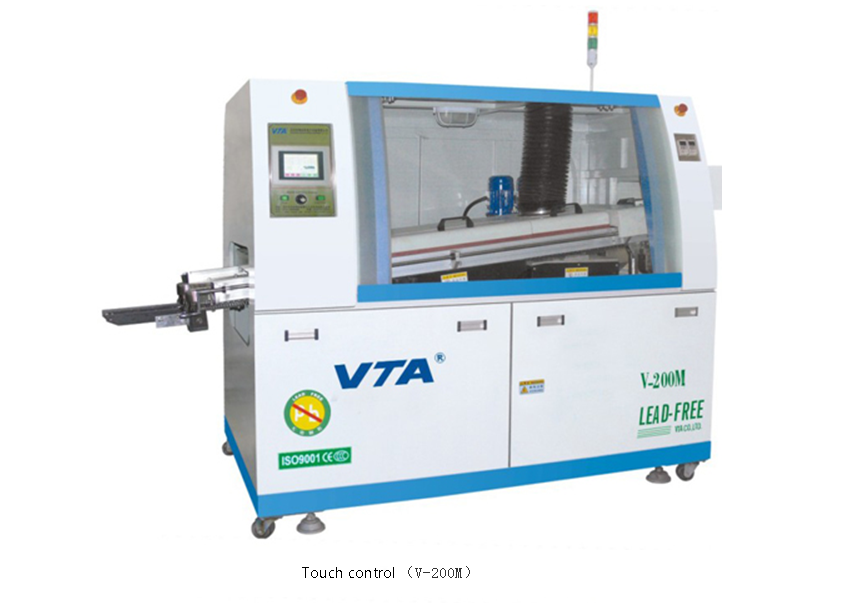

					V-300Mtouch
				 |

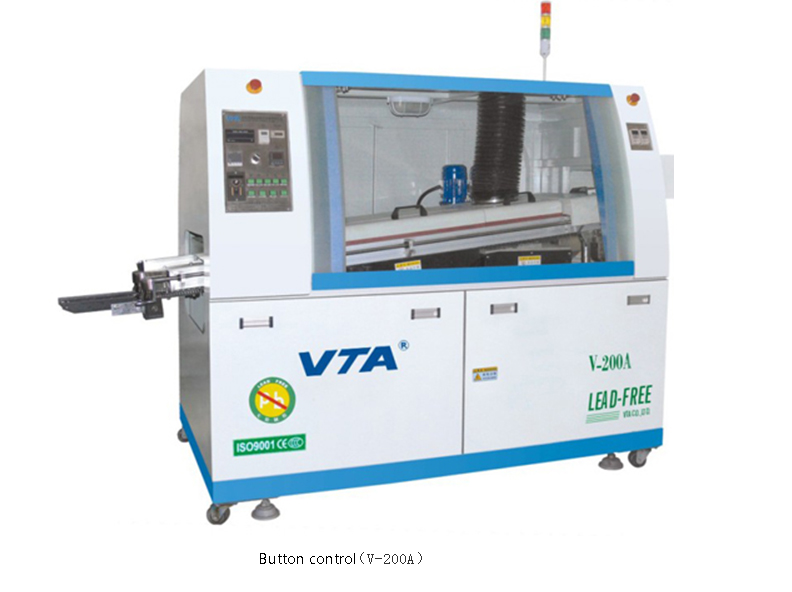

					V-300Abutton
				 |
|
						Control method
					 |
					computer+PLC

					Computer+PLC
				 |
					touch+PLC

					Touchscreen+PLC
				 |
					button+PLC

					Keys+PLC
				 |
|
						Conveyor motor
					 |
					1P AC220V 60W
				 | ||
|
						Conveyor speed
					 |
					300-900mm/min
				 | ||
|
						Conveyor speed
					 |
					50-200mm(w)
				 | ||
|
						PID Contorl)Temperature
					 |
					power:4KW  length:600mmOne section PID control

					temperature:(Room temperature-250℃)
				 | ||
| Transport height | 750 ± 20mm | ||
|
						Preheating Zone Power
					 |
					10KW (Cast iron heating plate)(Room temperature-300℃)
				 | ||
|
						Solder temperature
					 |
					200KG
				 | ||
|
						Wave height

						Solder pot wam-up time
					 |
					0-12mm
				 | ||
|
						Power supply
					 |
					3P AC220V 0.18KW×1pcs/2pcs
				 | ||
|
						Finger cleaning pump
					 |
					1P AC220V 6W
				 | ||
|
						Cooling system
					 |
					Ordinary air cooling
				 | ||
|
						Cooling system
					 |
					L→R(R→L)
				 | ||
|
						Flux method
					 |
					Foaming/spray | ||
|
						Air pressure of flux
					 |
					3-5BAR
				 | ||
|
						Conveyor angle
					 |
					4-6°
				 | ||
|
						Power supply
					 |
					3P AC380V 50HZ 63A
				 | ||
|
						Normal/starting power
					 |
					15.0KW/3.5KW
				 | ||
|
						Dimension
					 |
					1800(L)×1100(W)×1650mm(H)
				 | ||
|
						Appearance size
					 |
					2460(L)×1100(W)×1650mm(H)
				 | ||
|
						Net weight
					 |
					650KG
				 | ||
